Hydraulic Shear

Hydraulic clamp products suitable for excavators of various tonnages.

  • Double cylinder steel structure hydraulic shear
  • Double cylinder concrete hydraulic shear
  • Hydraulic crushing tongs
  • Heavy duty hydraulic shears
  • Car dismantling scissors
  • Grabs
  • Drum cutter

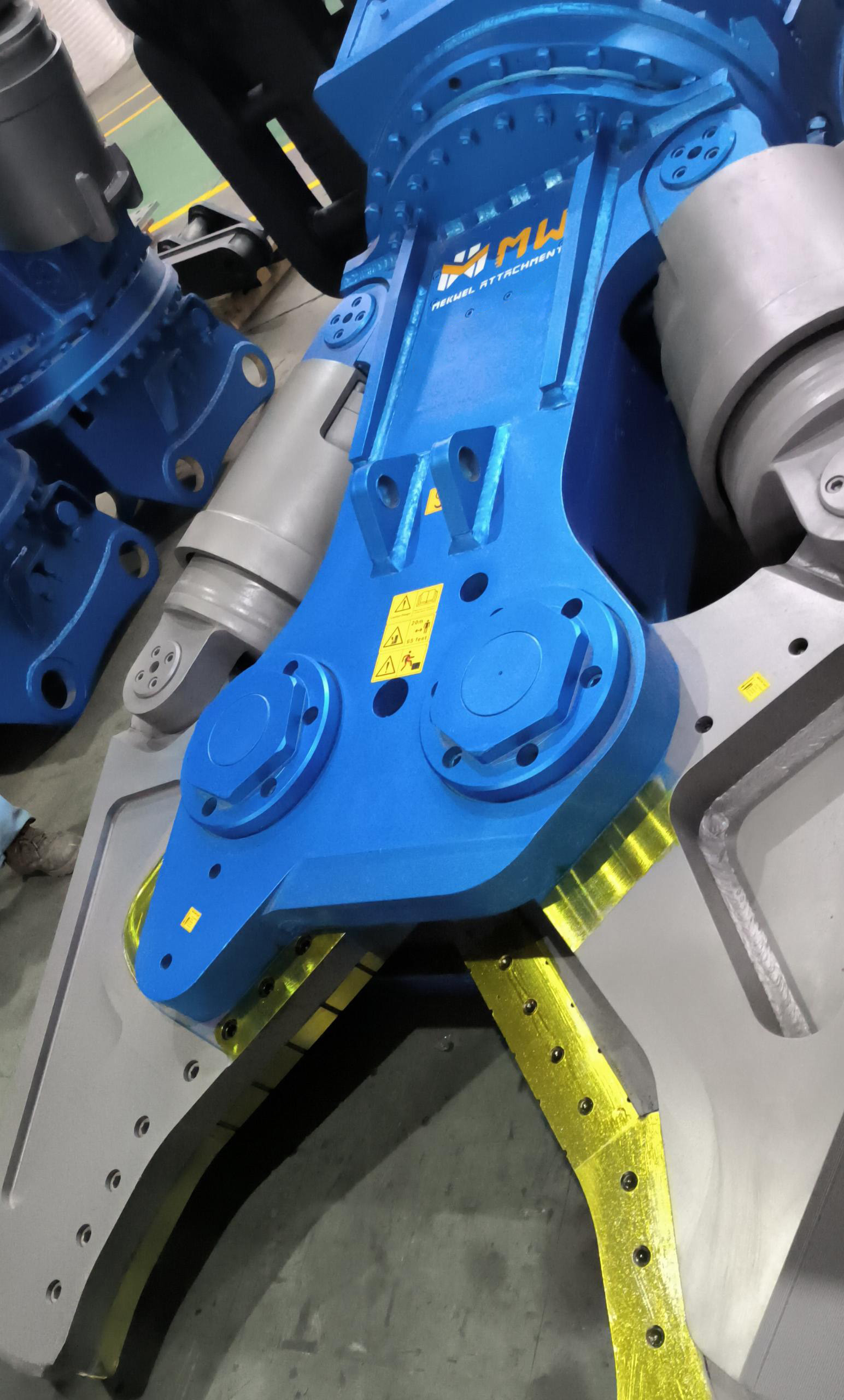

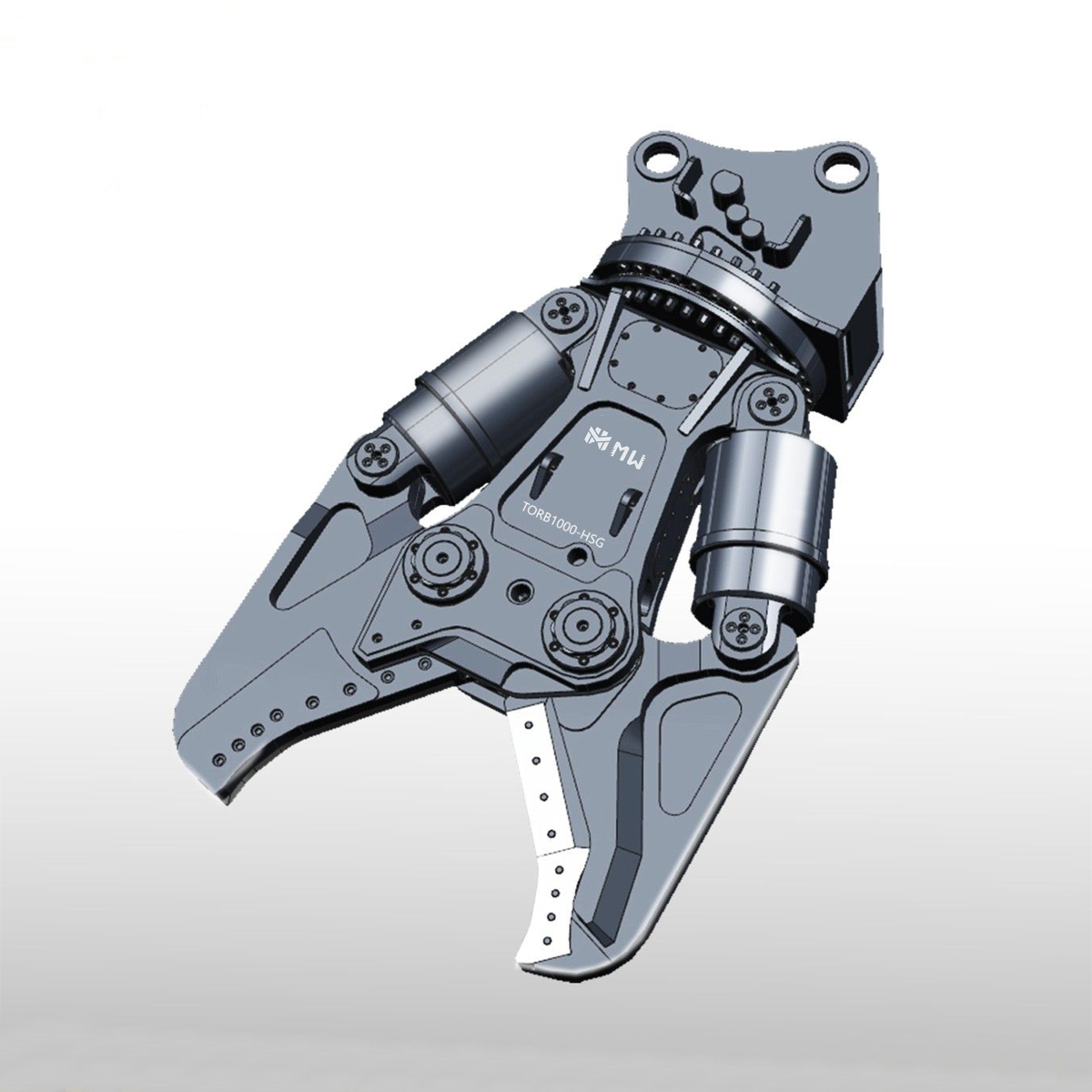

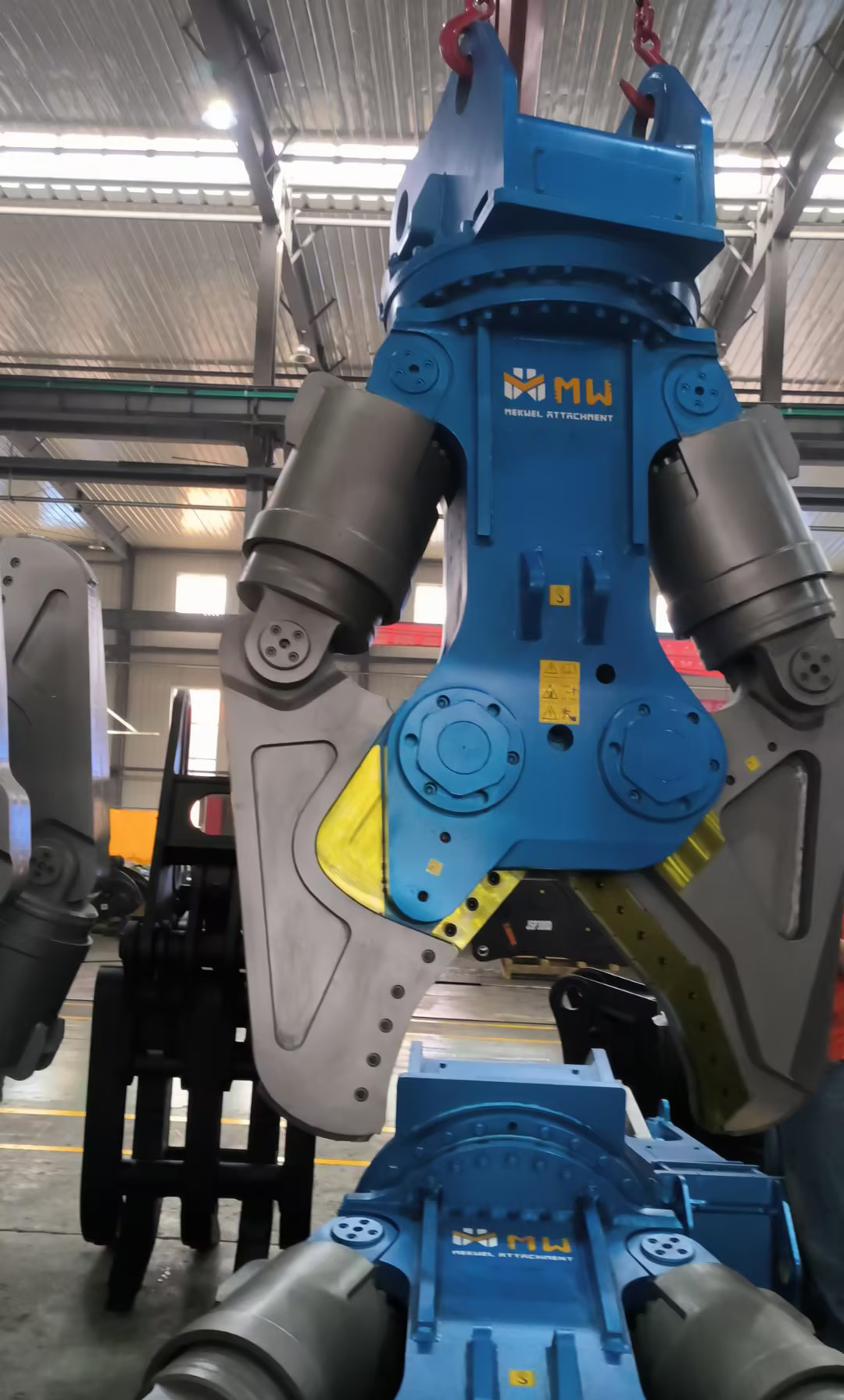

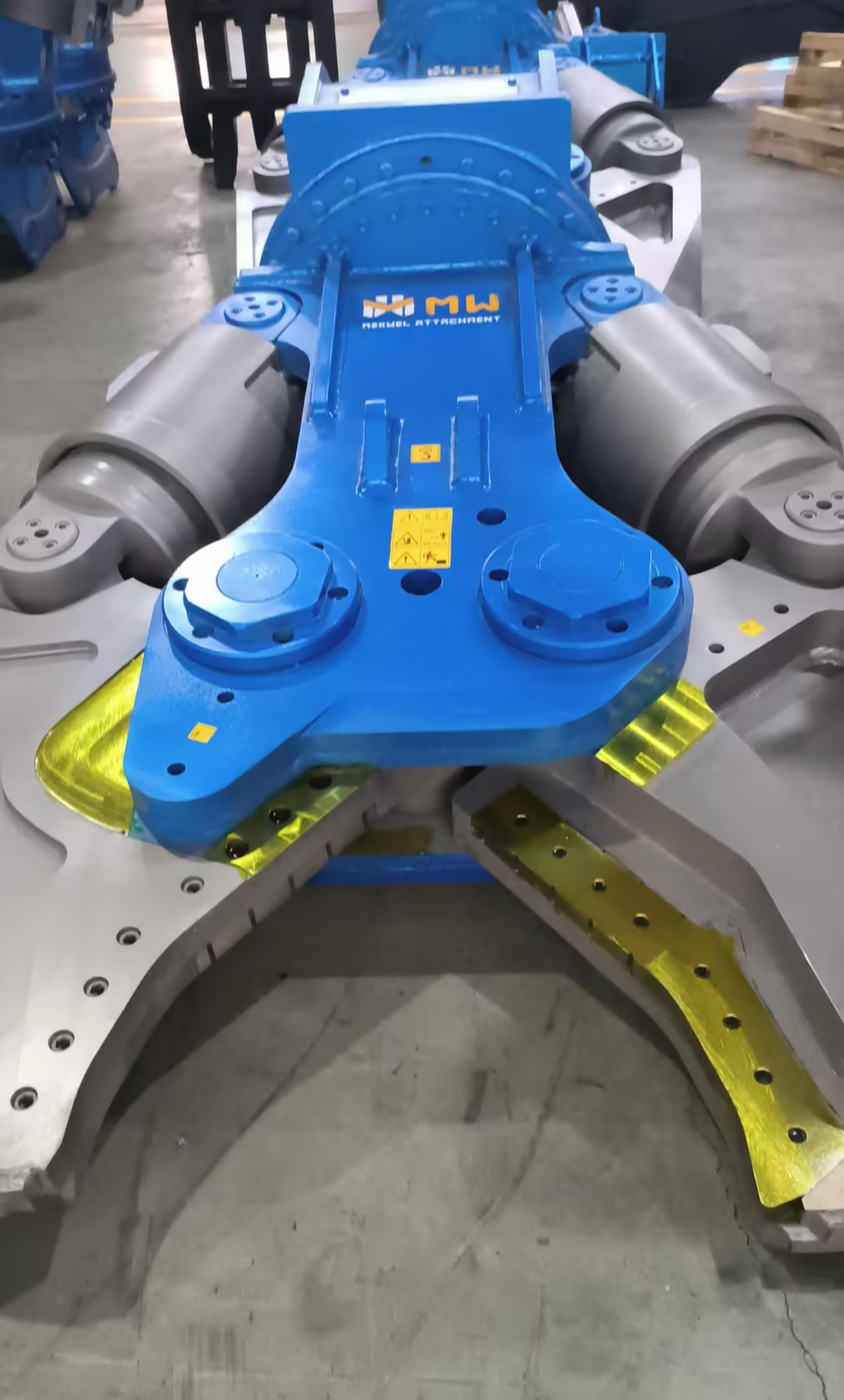

Double Cylinder Steel Structure Hydraulic Shear

j001
fc893d37cc9afbf57dae7d8ce4c70418
03a741a6ab393b5c0ef028ee2364bc5e
88e8e3b58781c0271a581b15b21bb9ea
  • Double large-diameter oil cylinders are powerful and can easily cut metal.
  • The standard acceleration valve can increase the closing speed by 30%-40%.
  • The blade can be used on multiple sides, reducing the cost of use.

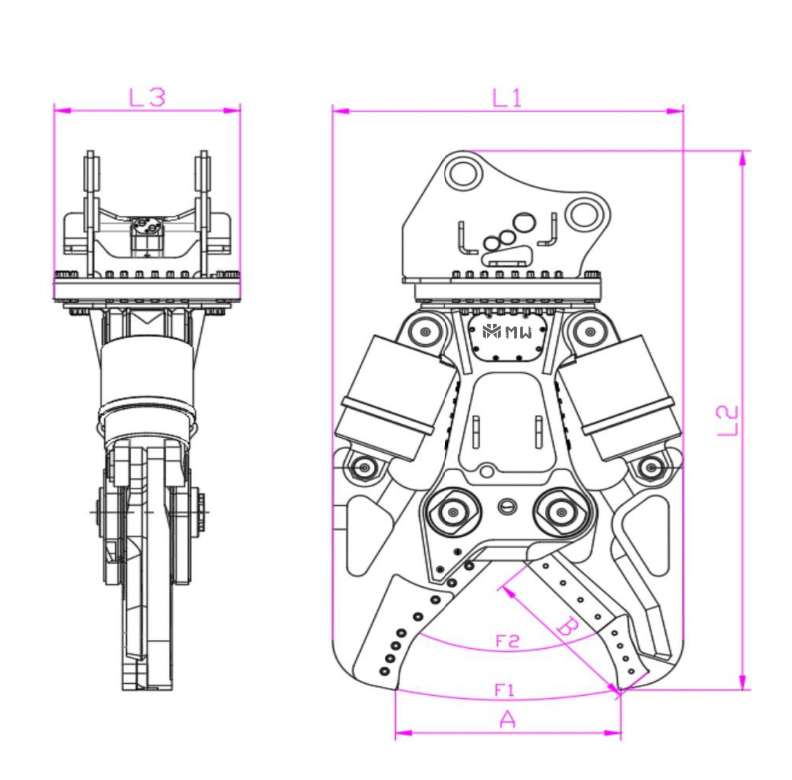

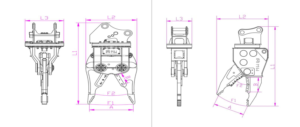

Product Details Project TOEB1000-HSG TOEB2000-HSG TOEB3000-HSG Unit
Suitable for excavators
15-20
22-26
30-38
T
Length L1
2016
2355
2675
mm
Length L2
1187
1353
1591
mm
Length L3
656
718
812
mm
Weight(about)
1600
2800
4400
kg
Opening And Closing Working Pressure
32-35
32-35
32-35
Mpa
Opening And Closing Work Flow
90-150
150-200
200-250
L/min
Rotating Working Pressure
10-12
10-12
10-12
Mpa
Rotate Workflow
30-40
30-40
30-40
L/min
Opening Width A
700
750
1000
mm
Blade Length B
325+210
350+260
450+310
mm
Shear Force F1
77
112
132
tf
Shear Force F2
112
153
193
tf

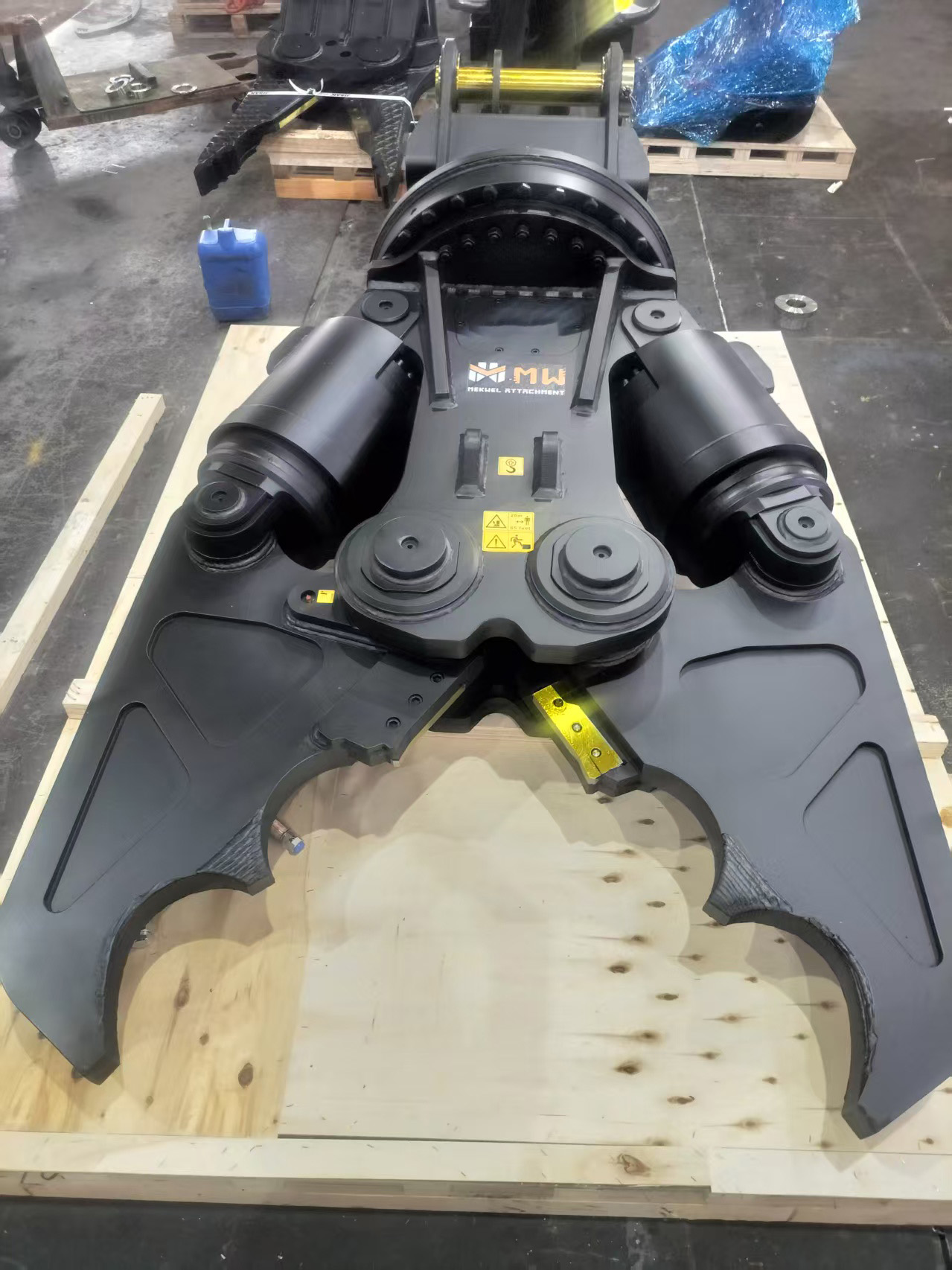

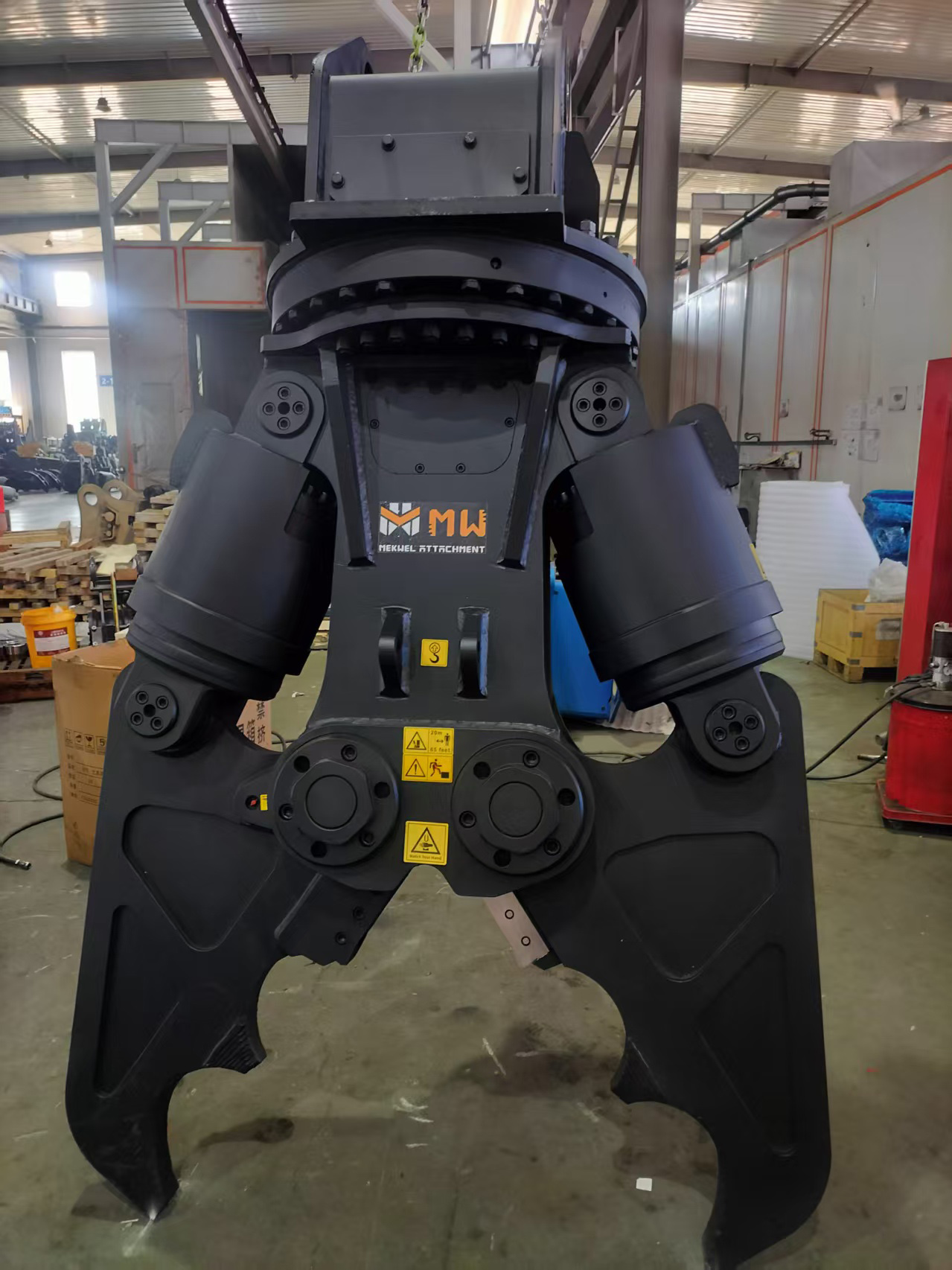

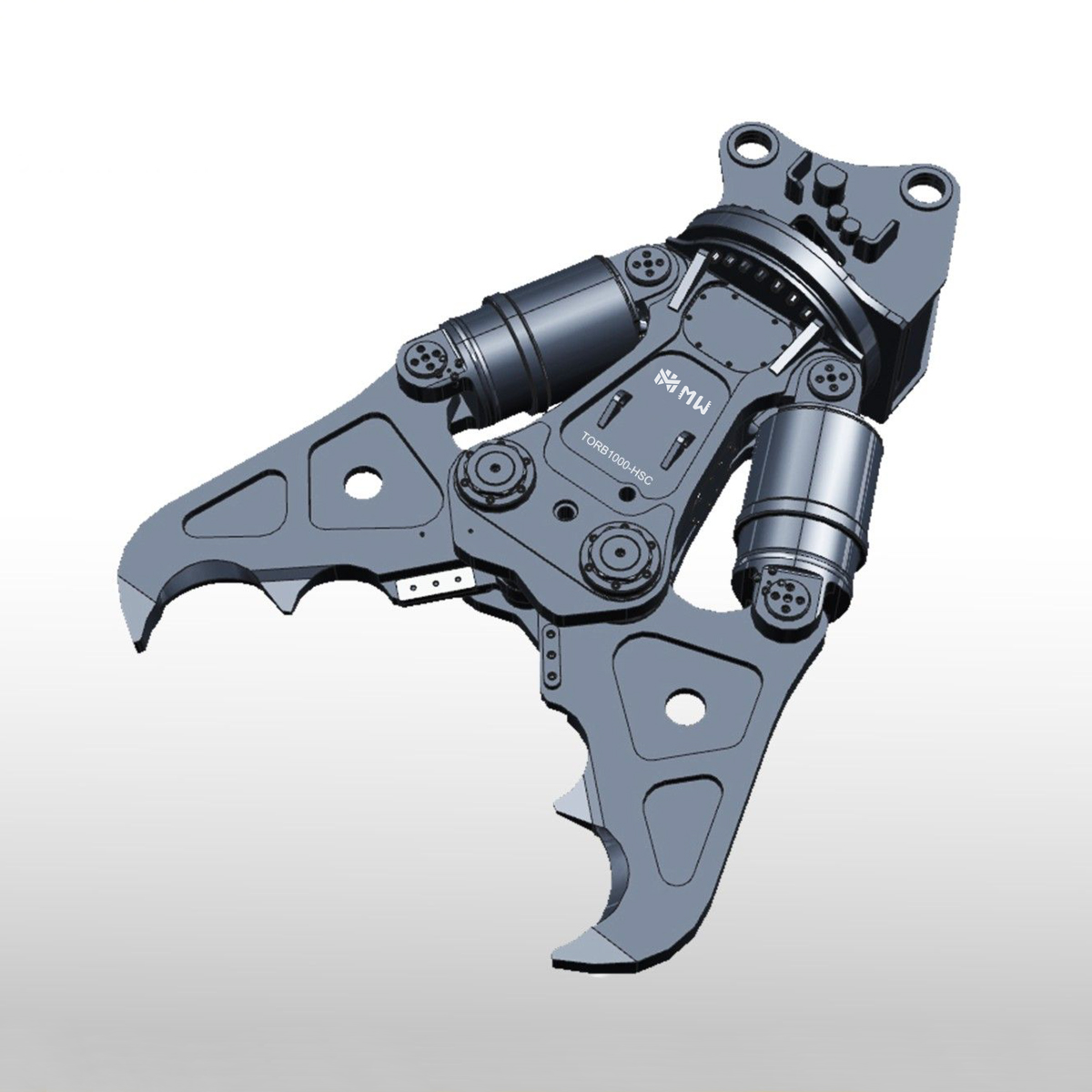

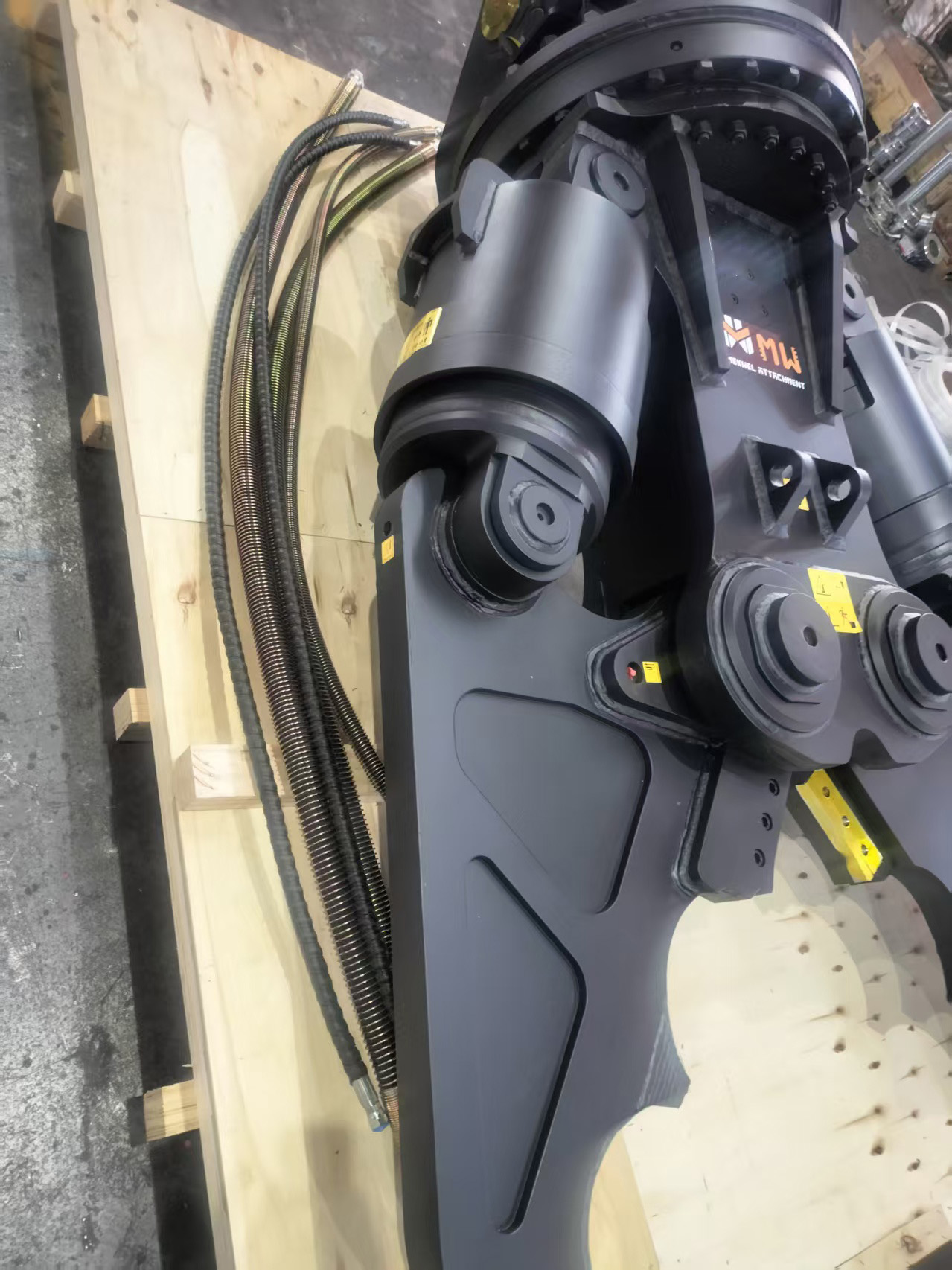

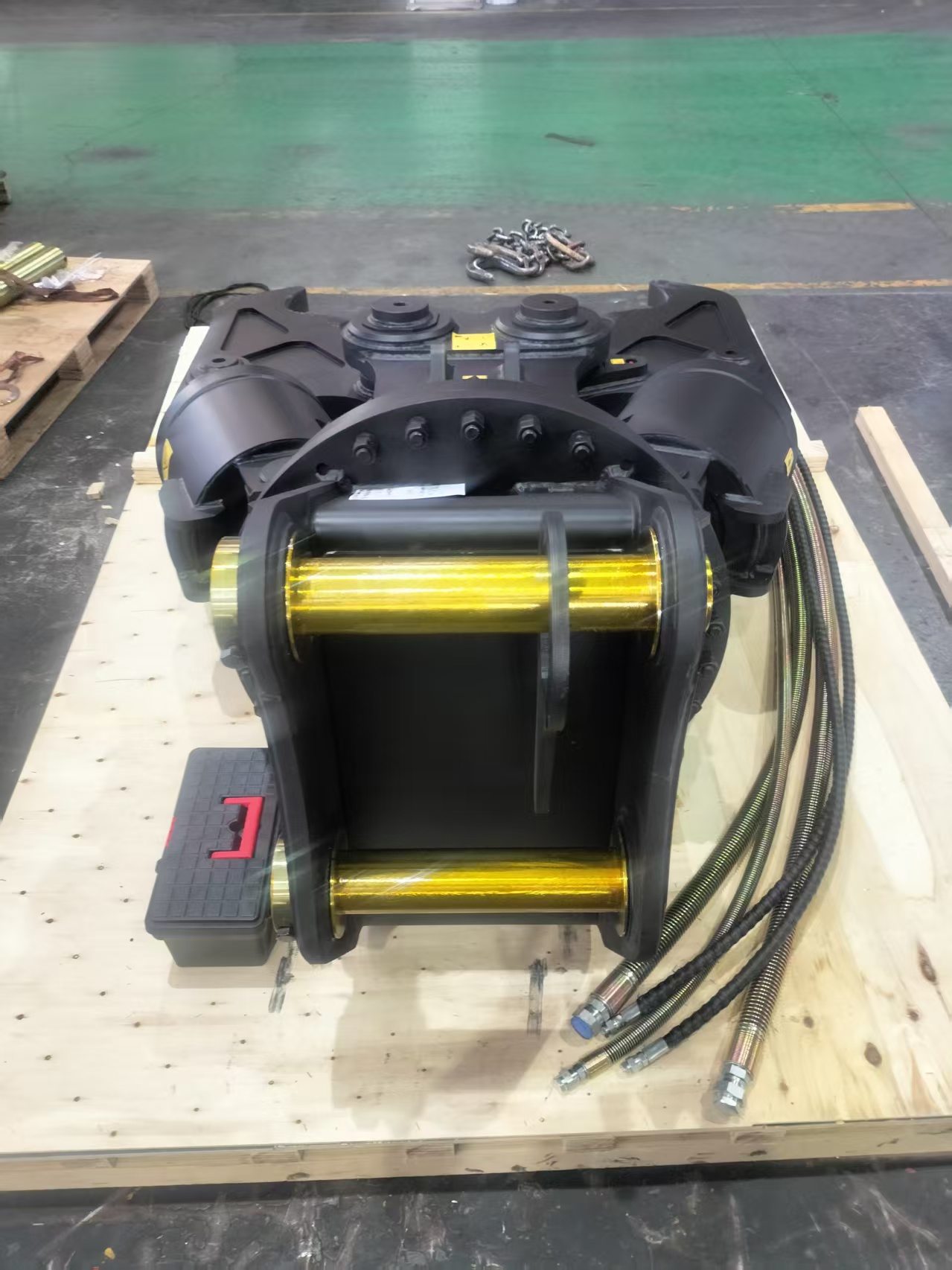

Double Cylinder Concrete Hydraulic Shear

j002
e91e6fdec2fa2dec3cb3283edc5dffc2
dce695ff7d0d837308143d023c021ed4
0f89ea0d7dce21cc2c71fd1d55c46560
93b88ab37f707ff34be77794c279108d
  • Double large-diameter oil cylinders are powerful and can easily cut cement buildings.
  • The standard acceleration valve can increase the closing speed by 30%-40%.
  • The main body and jaw are made of special steel with high strength and good wear resistance.

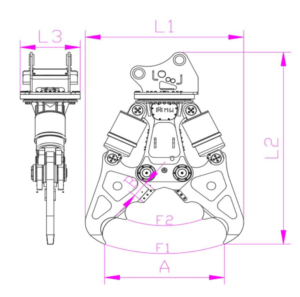

Product Details Project TORB1000-HSC TORB2000-HSC TORB3000-HSC Unit
Suitable for excavators
15-20
22-26
30-38
T
Length L1
2045
2600
2840
mm
Length L2
1500
1800
2143
mm
Length L3
656
720
812
mm
Weight(about)
1725
2560
4100
kg
Opening And Closing Working Pressure
32-35
32-35
32-35
Mpa
Opening And Closing Work Flow
90-150
150-200
200-250
L/min
Rotating Working Pressure
10-12
10-12
10-12
Mpa
Rotate Workflow
30-40
30-40
30-40
L/min
Opening Width A
1000
1200/1300
1500/1600
mm
Blade Length B
170
210
240
mm
Shear Force F1
79
114
139
tf
Shear Force F2
114
171
215
tf

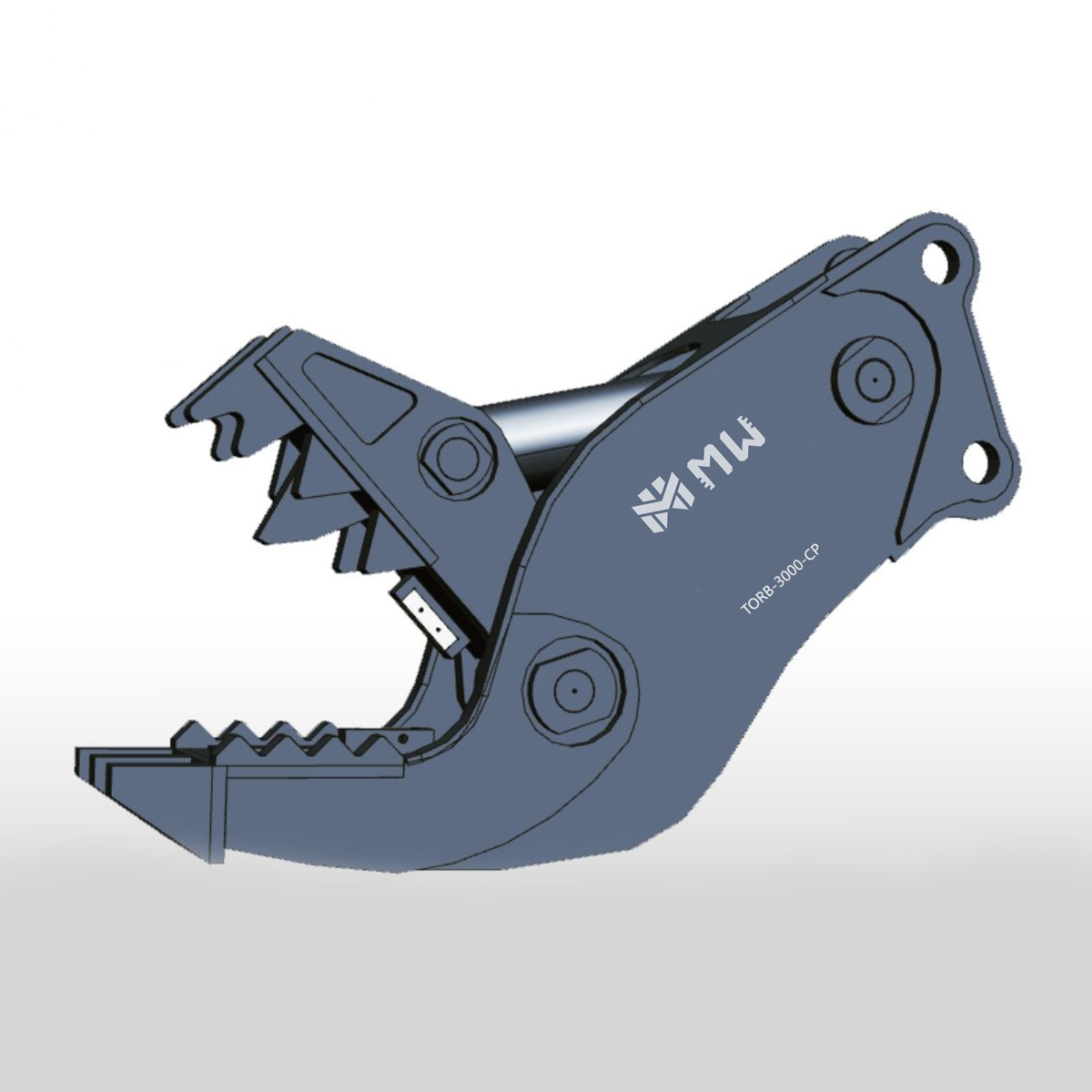

Hydraulic Crushing Tongs

j003
  • In building demolition operations, the efficiency of sorting steel bars from concrete is 3-5 times that of traditional breaker operations
  • the working principle tends to be fexible. The damage to the excavator during use is equivalent to that of the bucket, which is significantly lower than that of traditional breakers.
  • The noise generated during work is equivalent to that of a bucket. Low noise is more suitable for urban operations.
  • It can 100% replace labor and independently complete the packing and loading of steel bars.
  • Electromagnet-type crushing pliers can be optionally equipped to easily complete the collection and sorting of fine metals and increase profits
Project TORB-500-CP TORB-800-CP TORB-1000-CP TORB-2000-CP TORB-3000-CP Unit
Suitable for excavators
4-6
10-18
22-26
25-30
30-38
T
Length L1
1120
1950
2350
2550
2650
mm
Length L2
679
1200
1400
1400
1600
mm
Length L3
245
425
500
580
600
mm
Weight(about)
320
1000
1600
1700
2500
kg
Opening And Closing Working Pressure
20-25
32-35
32-35
32-35
32-35
Mpa
Opening And Closing Work Flow
60-100
90-110
150-200
180-220
200-250
L/min
Opening Width A
386
680
745
745
910
mm
Blade Length B
100
150
150
150
190
mm
Shear Force F1
21
42
54
64
103
tf
Shear Force F2
32
55
71
83
135
tf

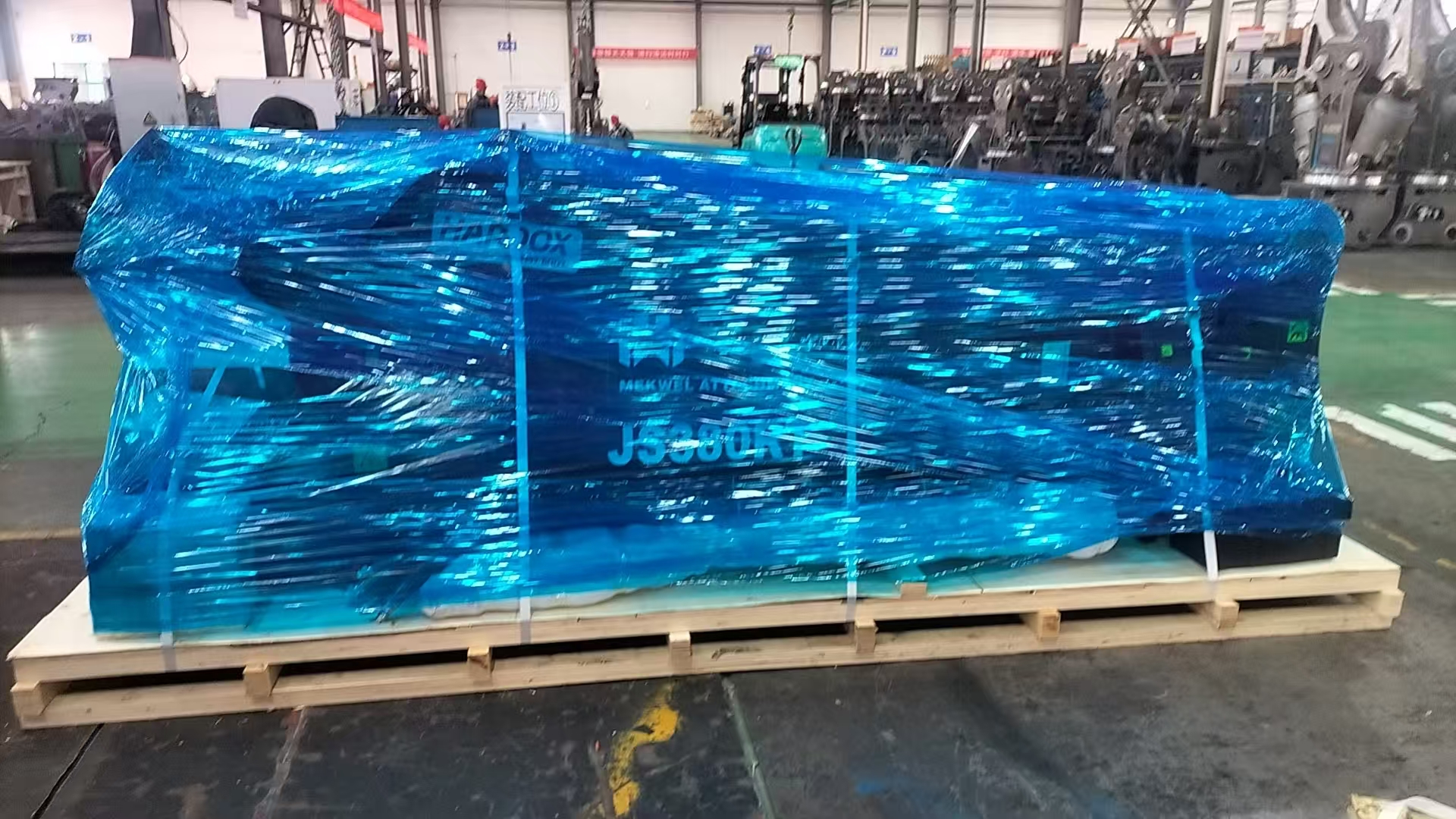

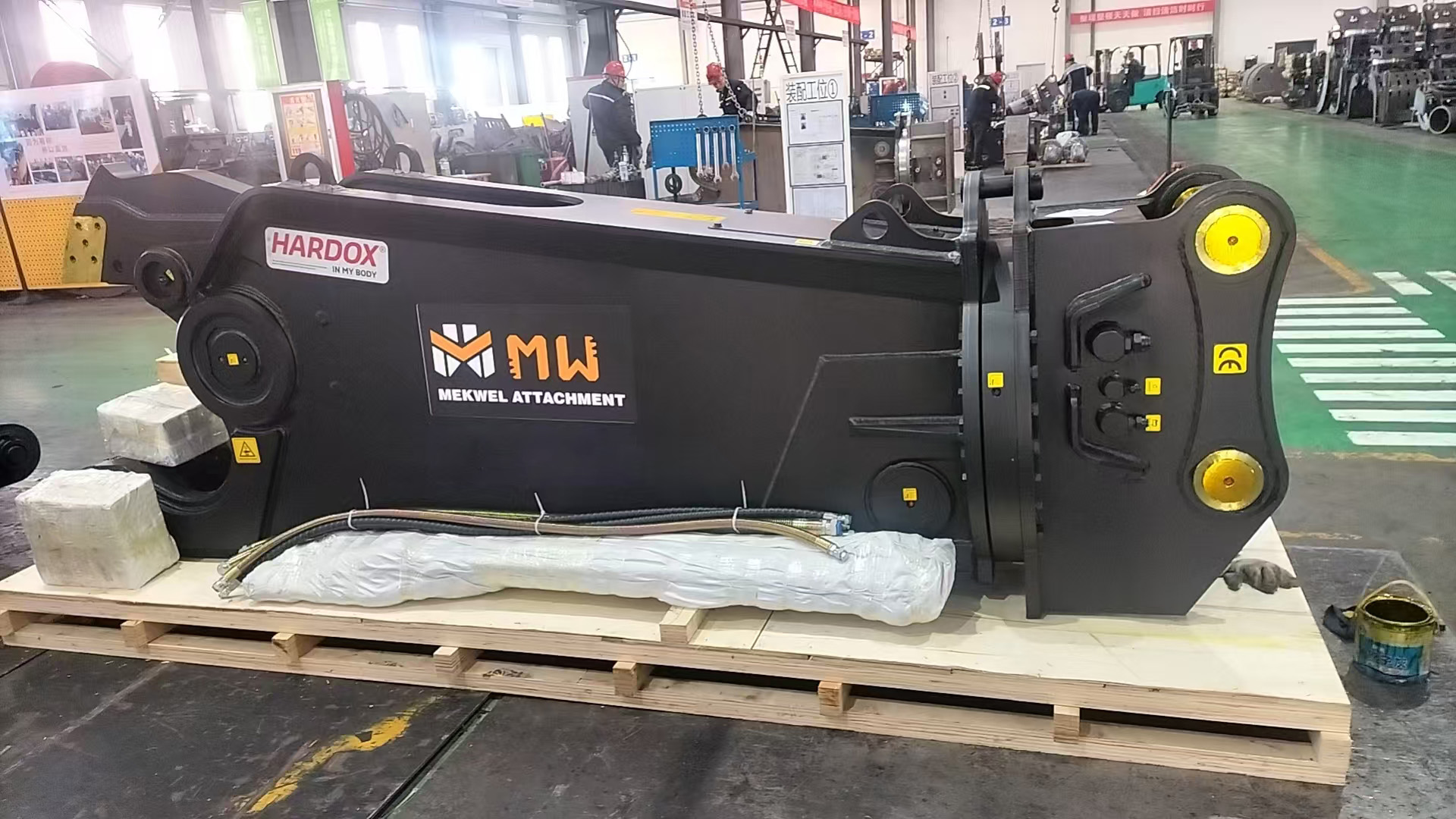

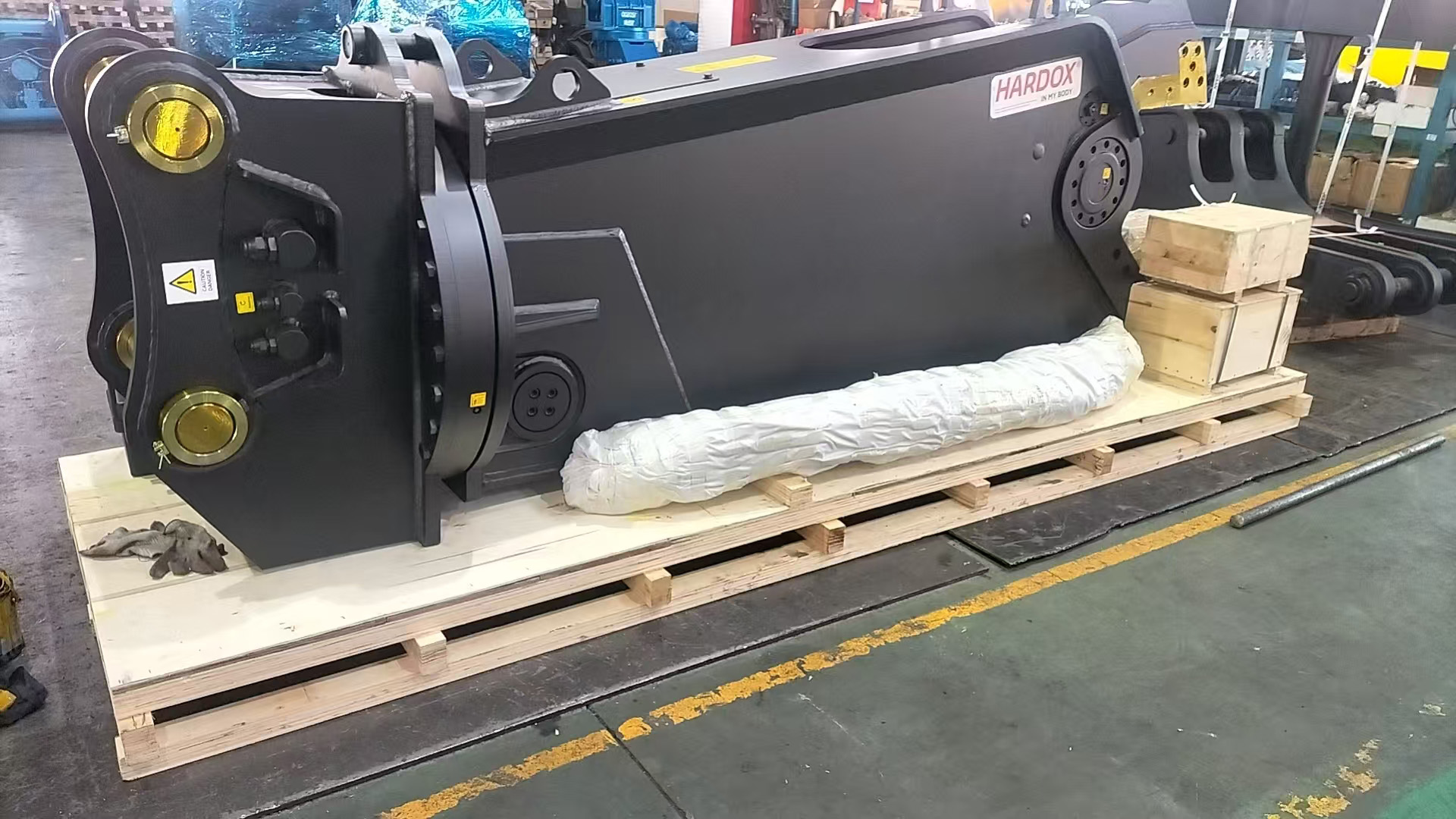

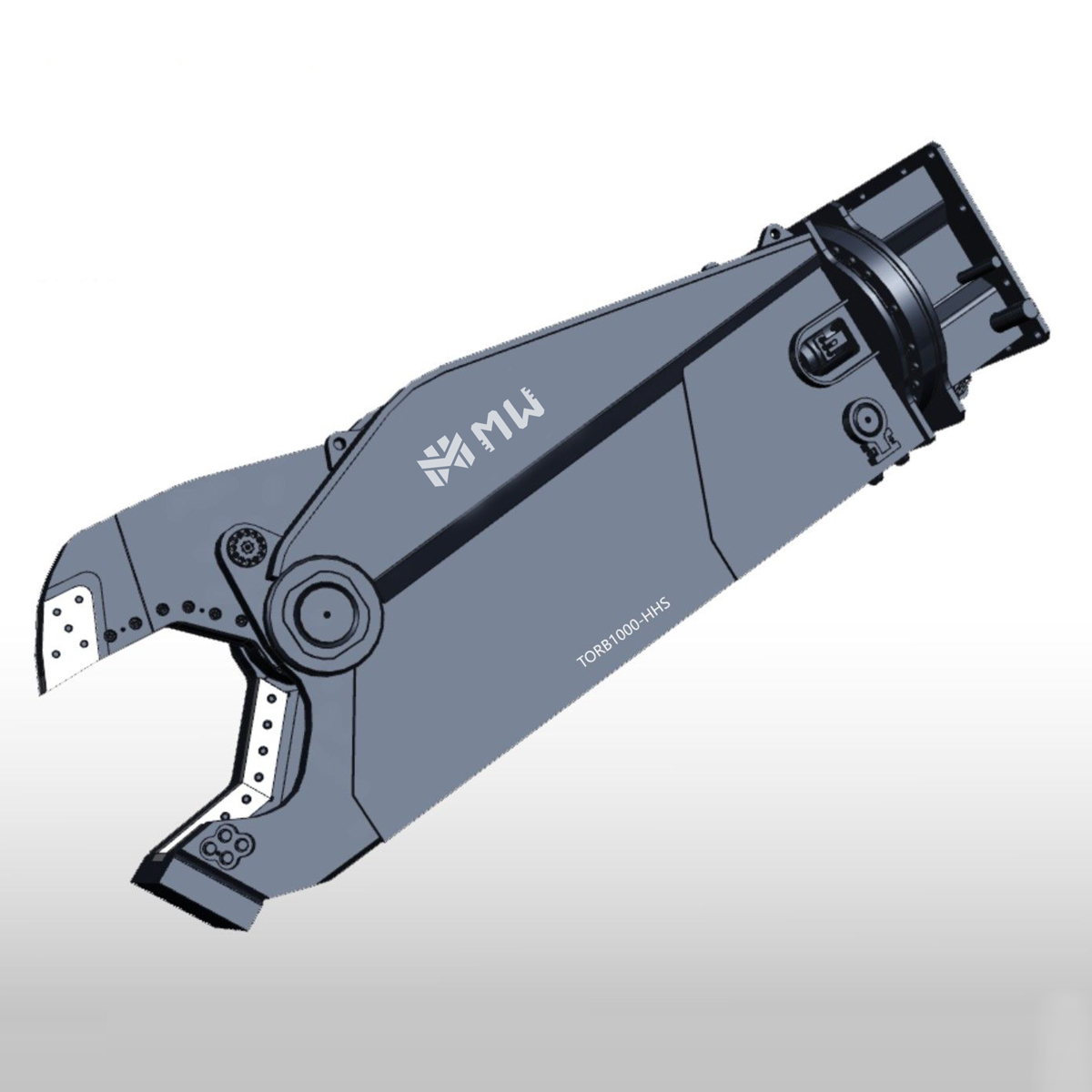

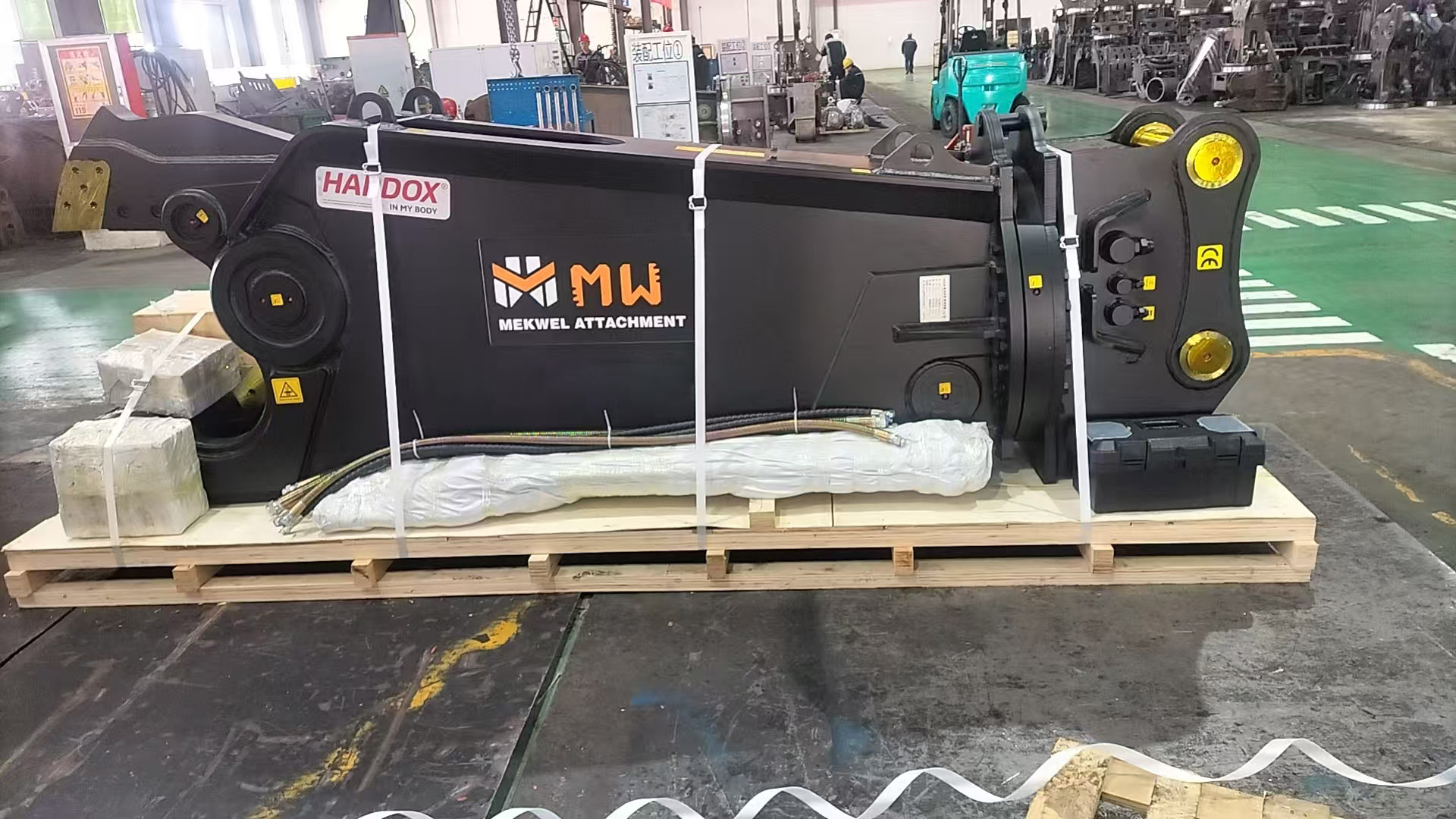

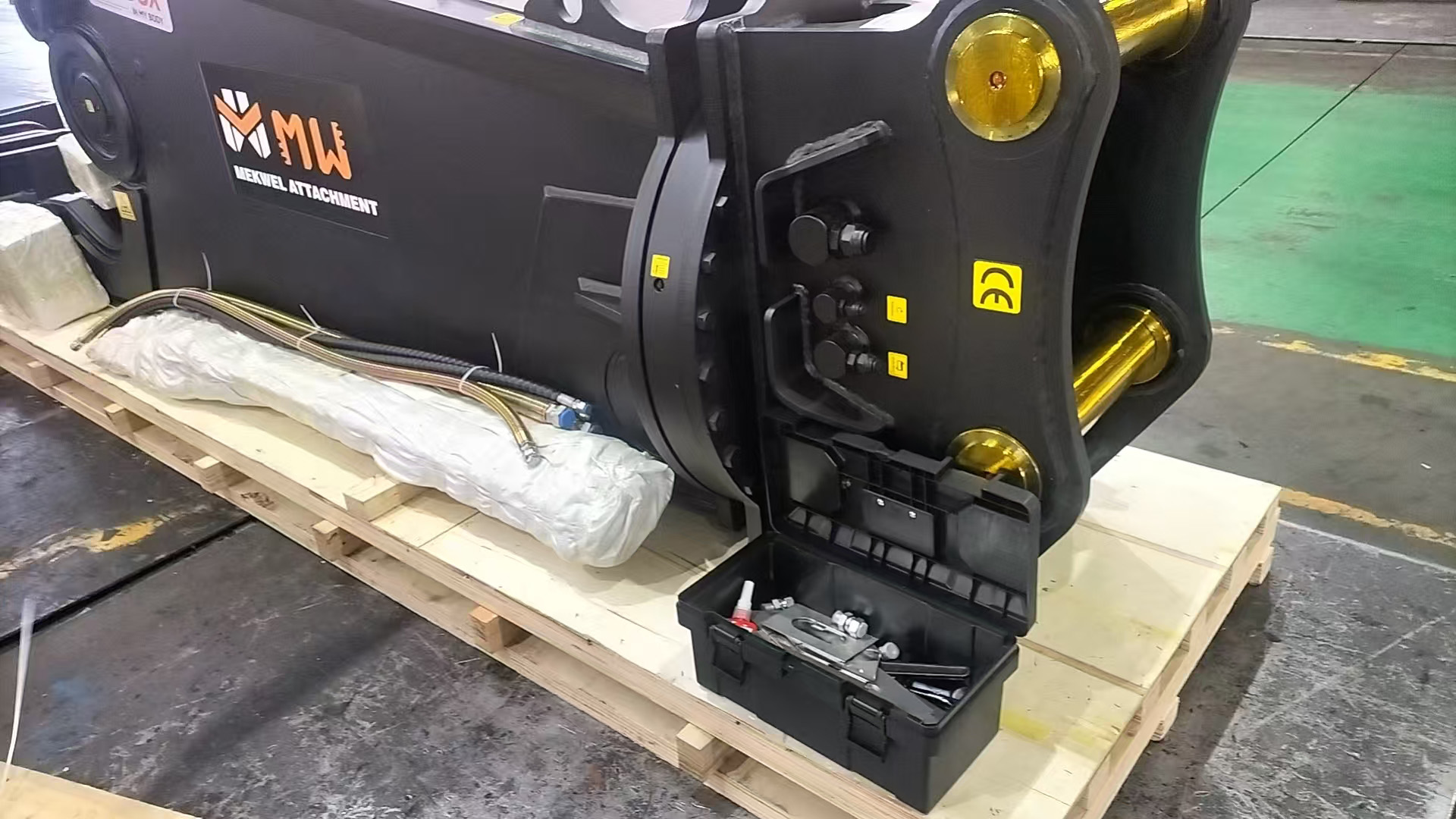

Heavy Duty Hydraulic Shears

j005
7259b28a4fc50c108442a08cac9bf313
ff43657555d4fcf787772e8c0120cb71
a6a1028bd093d65d93f5c68ddcdf6705
b4c98e23fb3cda37b64fa4cf8eae177f
f5251fcac6a0d1fa7212d3efdcf6ed21
  • Forged integrated cylinder rod, no risk of breakage.
  • It adopts patented sandwich main structure and high-strength steel plate to ensure that the main bodydoes not deform.
  • The blade can be used on multiple sides, reducing the cost of use.
  • The large-diameter oil cyinder combined with the carefuly designed blade structure has huge power and can easily cut metal

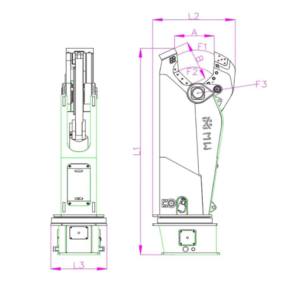

Project TORB1000-HHS TORB3000-HHS TORB5000-HHS TORB7000-HHS Unit
Suitable For Excavators (forearm Installation)
20-26
30-38
39-50
50-65
T
Suitable For Excavators (boom Installation)
14-18
20-28
28-39
39-45
T
Length L1
2767
3400
3894
4073
mm
Length L2
1005
1280
1428
1583
mm
Length L3
720
870
900
982
mm
Weight (approximately Does Not Include Connecting Bracket)
2491
3740
5450
6500
kg
Opening And Closing Working Pressure
32-35
32-35
32-35
32-35
Mpa
Opening And Closing Work Flow
150-200
200-250
250-300
280-380
L/min
Rotating Working Pressure
10-12
10-12
10-12
10-12
Mpa
Rotate Workflow
30-40
30-40
30-40
30-40
L/min
Opening Width A
474
617
660
775
mm
Blade Length B
540
649
754
812
mm
Shear Force F1
82
121
160
200
tf
Shear Force F2
217
314
450
490
tf
Shear Force F3
847
1134
1500
1900
tf

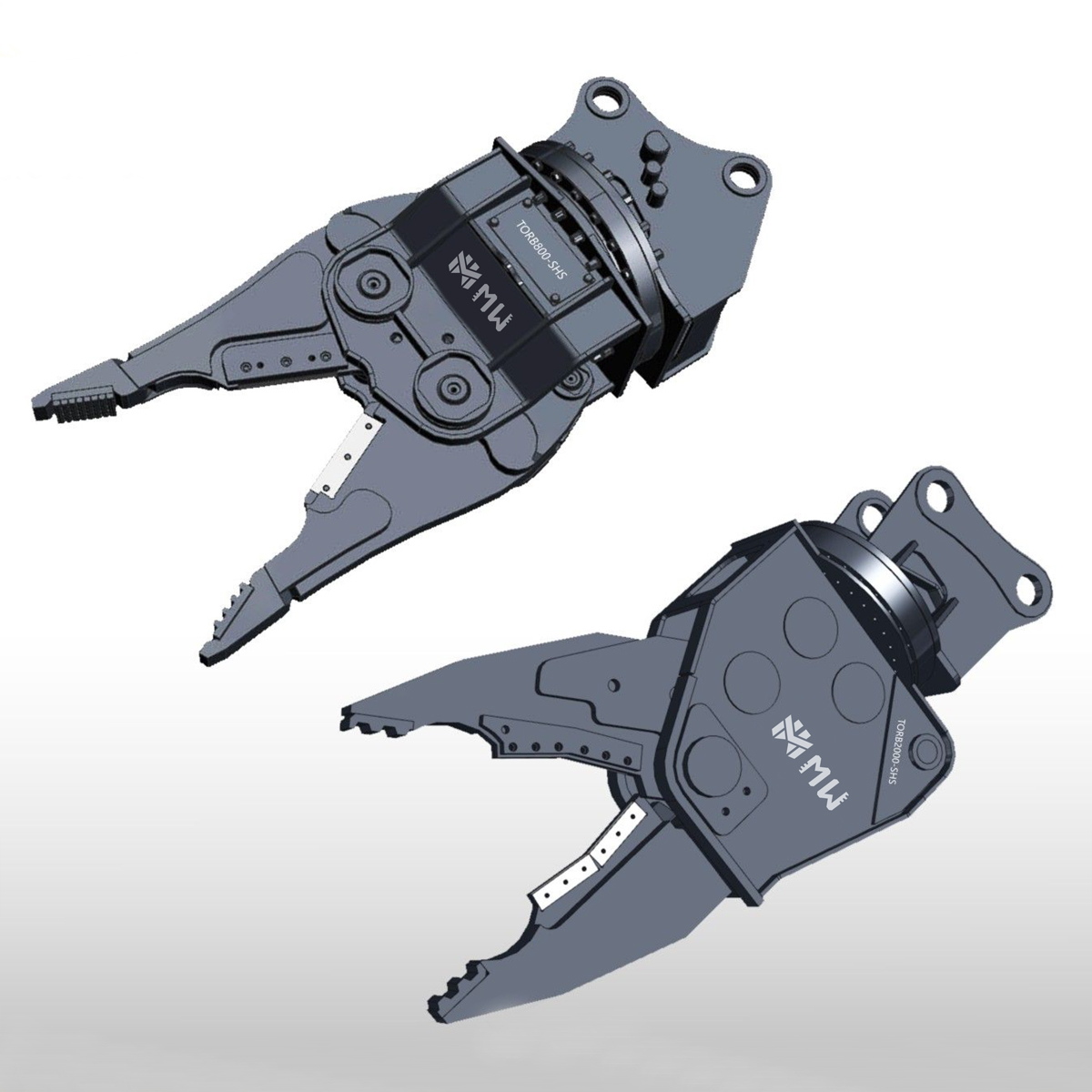

Car Dismantling Scissors

j004
  • It can realize the functions of clamping, tearing and cutting the car, and effectively and completely disassemble the car.
  • Can be rotated 360 degrees to flexibly realize waste classification.
  • High-strength chuck that has been precisely processed to achieve full left and right engagement for effective clamping. And can be replaced to maintain optimal working condition.
  • 4 curved blades form corresponding grooves, and the metal is sheared at the grooves to prevent slippage
Project TORB1000-HHS TORB3000-HHS Unit
Suitable For Excavators
12-15
18-26
T
Length L1
1931
2577
mm
Length L2
866
1435
mm
Length L3
656
700
mm
Weight (about)
950
1750
kg
Opening And Closing Working Pressure
32-35
32-35
Mpa
Opening And Closing Work Flow
90-110
150-200
L/min
Rotating Working Pressure
10-12
10-12
Mpa
Rotate Workflow
30-40
30-40
L/min
Opening Height A
746
878
mm
Blade Length B
250
230+230
mm
Teeth Grip F1
9
26
tf
Shear Force F2
29
69
tf
